Easton Axis 5mm
- Questions? Call us at 714-449-9744
- Low stock - 2 items left
- Backordered, shipping soon

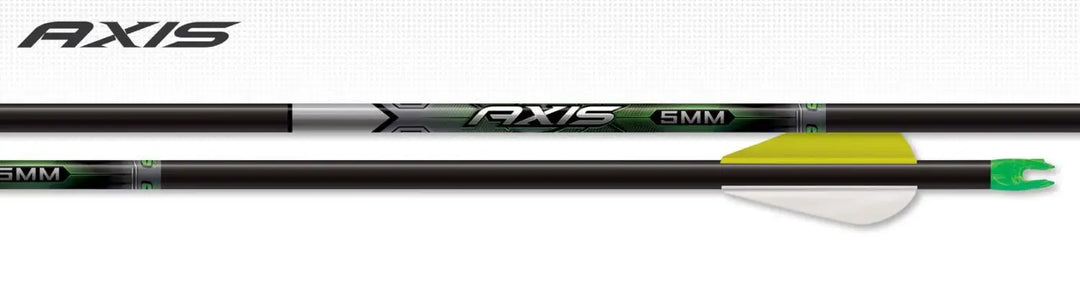

The hands-down proven small diameter all carbon arrows. Faster, Deeper, Deadlier.
Millions of successful hunts testify to the awesome effectiveness of a simple concept that equates to more downed big game. The AXIS micro profile focuses the kinetic energy into an ultra-small frontal area for less friction and thus greater penetration. AXIS penetrates deeper as the shaft passes through animals with less friction behind the broadhead channel. The small diameter also means that AXIS arrows fly much better in crosswinds than regular carbon arrows. That means broadheads will find the aim-point more often in the field. AXIS is widely distributed across the nation and is found in virtually every pro shop.
Available Sizes: 200, 260, 300, 340, 400, 500, 600
SPECIFICATIONS
• 5mm HIT 8-32 insert (16 grains) or 5mm Aluminum Half-out included
• Pre-installed 5mm X Nocks
• Straightness: ± .003”
• 5mm small diameter uniform ACU-CARBON
• High-strength carbon-composite fibers
| Size |
Shaft Weight (GPI) |
Spine @ 28″ Span (deflection in inches) |
Stock Length (Inches) |
Field Point (O.D. Inches) |
Match Grade HIT Collar |
Broadhead Adapter Ring Size (5 grains) |
O.D. (inches) |
5mm Half Out (size) |
|---|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | #1 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 |
31 | 17/64 | #1 | BAR 3 | 0.258 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | #2 | BAR 4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | #3 | BAR 5 | 0.267 | #2 |
| 300* | 10.7 | 0.300 | 32.5* | 9/32 | #4 | BAR 6 | 0.275 | #2 |
| 260* | 11.5 | 0.260 | 34* | 9/32 | #5 | BAR 6 | 0.280 | #2 |
| 200* | 12 | 0.200 | 34* | 9/32 | #6 | BAR 6 | 0.286 | #2 |
